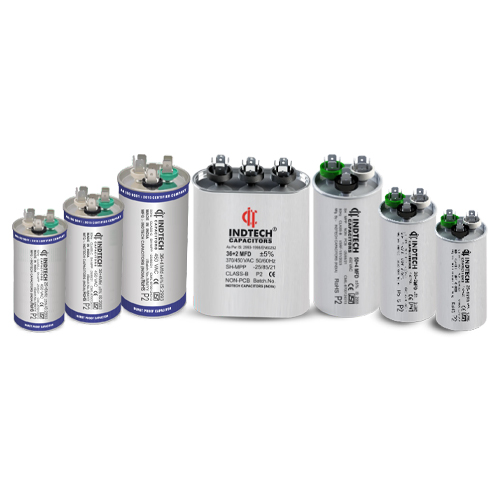

Air conditioner capacitor ( Dual value )
Download our Brochure
We are a world-class leading capacitor manufacturer and supplier in India providing the best quality products and services to our customers.
Air conditioner capacitor ( Dual value )
Technical Specifications
|
Climatic Category
|
Rated Voltage
|
Testing Voltage T-T
|
Testing Voltage T-C
|
Capacitance Tolerance
|
Dissipation Factor
|
|---|---|---|---|---|---|
|
25/+85/21
40/+85/21 |
450V AC
|
Rated Voltage for 2 sec
|
2000V AC for 2
|
±5%
|
0.002 (100Hz)
|
|
Capacitance Range
|
Dimension (mm)
|
Reference Standard
|
Certification
|
Filling Compound
|
Safety Grade
|
|---|---|---|---|---|---|
|
25-2MFO- 80+6MFD
|
040-060
|
72-130
|
CE, ROHS
|
Gel Resin Filled
|
P2 or S2
|

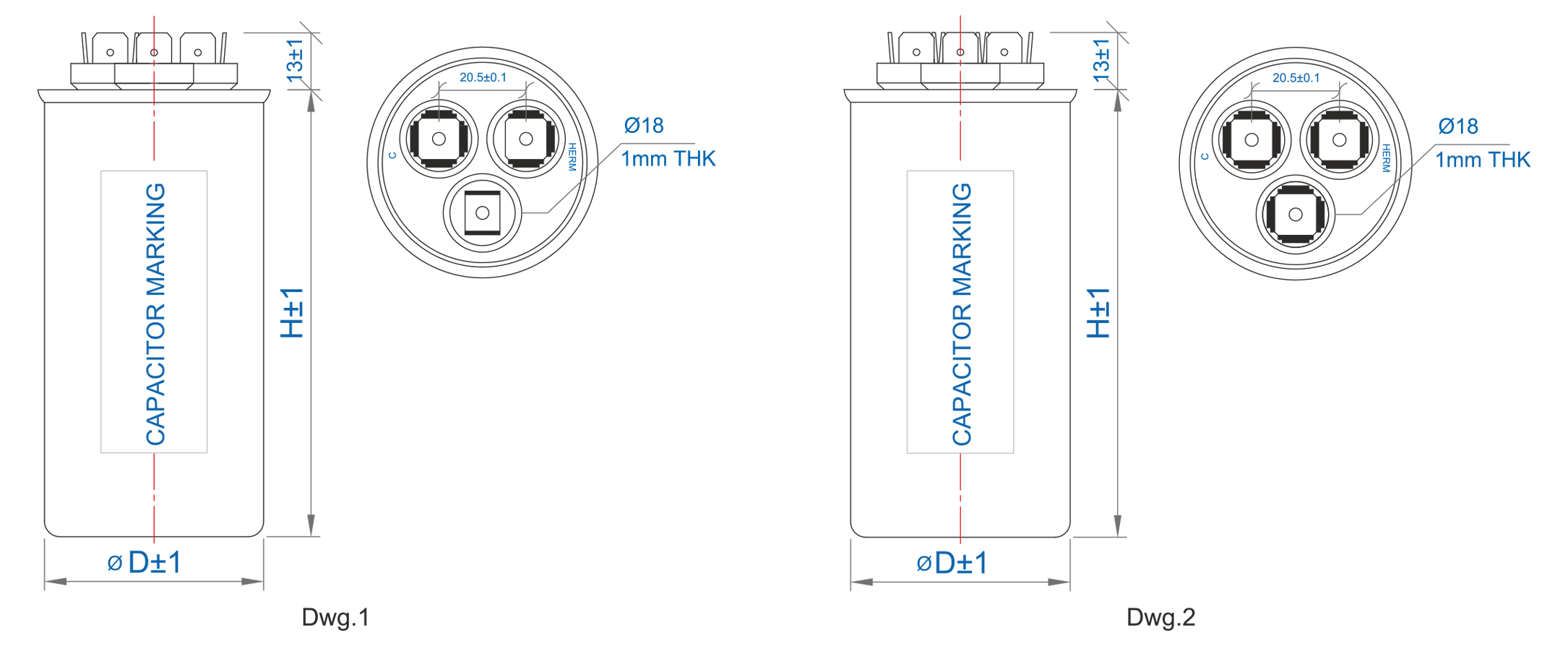

PRODUCT RANGE, DIMENSIONAL DRAWINGS & TABLE
| Rated capacitance | 2+4 Fast-on Pin | 4+4 Fast-on Pin | Double Fast-on Pin | 2+4/4+4 Fast-on Pin |
| µF | øD x H (mm) Dwg.1 | ØD x H (mm) Dwg.2 | ØD x H (mm) Dwg.3 | x W x H (mm) Dwg.4 |
| 25+2 | 45x102 | 50x102 | 45x102 | 50x102 |
| 25+4 | 45x102 | 50x102 | 45x102 | 50x102 |
| 25+6 | 45x102 | 50x102 | 45x102 | 50x102 |
| 25+6 | 45x102 | 50x102 | 45x102 | 50x102 |
| 30+2 | 45x102 | 50x102 | 45x102 | 50x102 |
| 30+25 | 45x102 | 50x102 | 45x102 | 50x102 |
| 30+4 | 45x102 | 50x102 | 45x102 | 50x03 |
| 30+5 | 45x102 | 50x102 | 45x102 | 50x102 |
| 30+6 | 45x102 | 50x102 | 45x102 | 50x102 |
| 35+2 | 45x102 | 50X102 | 45X102 | 50x102 |
| 35+4 | 45x102 | 50x102 | 45x102 | 50x102 |
| 35+6 | 45x102 | 50x102 | 45x102 | 50x102 |
| 35+6 | 45x102 | 50x102 | 45x102 | 50x102 |
| 36+2 | 45x102 | 50X102 | 45x102 | 50x102 |
| 36+25 | 45x102 | 50X102 | 45x102 | 50x102 |
| 36+4 | 45x102 | 50x102 | 45x102 | 50x102 |
| 36+5 | 45x102 | 50x102 | 45x102 | 50x102 |
| 38+6 | 45x102 | 50X102 | 45x102 | 50.00 |
| 40+2 | 45x102 | 50X102 | 45x102 | 50x102 |
| 40+2.5 | 45x102 | 50x102 | 45x102 | 50x102 |
| 40+4 | 45x102 | 50X102 | 45x102 | 50x102 |
| 40+5 | 45x102 | 50X102 | 45x102 | 50.102 |
| 40+6 | 45x102 | 50X102 | 45x102 | 50X102 |
| 45+2 | 45x102 | 50X102 | 45x102 | 50x102 |
| 45+25 | 45x102 | 50x102 | 45x102 | 50x102 |
| 45+4 | 45x102 | 50x102 | 45x102 | 50x102 |
| 45+5 | 45x102 | 50X102 | 45x102 | 50x102 |
| 45+0 | 45X102 | 50X102 | 45X102 | 50x002 |
| 50+2 | 50X102 | 50X120 | 50x102 | 50x120 |
| 50+25 | 50x102 | 50x120 | 50x102 | 50x120 |
| 50+4 | 50x102 | 50x120 | 50x102 | 50x120 |
| 50+5 | 50x102 | 50x120 | 50x102 | 50x120 |
| 50+6 | 50x102 | 50x120 | 50x102 | 50x120 |
| 54+4 | 50x102 | 50x120 | 50x102 | 50x120 |
| 55+2 | 50x120 | - | 50x120 | - |
| 55+25 | 50x120 | - | 50x120 | - |
| 55+4 | 50x120 | - | 50x120 | - |
| 55+5 | 50x120 | - | 50x120 | - |
| 55+6 | 50x120 | - | 50x120 | - |
| 55+7.5 to 55+10 | 50x120 | Activate | ows | - |
| 60+2 to 60+10 | 50x120 | 50x120 | - | |
| 65+5 | 50x120 | GG to | W INDOWS |
